性能规范 Technical Data
华体会体育(中国)官方网站
公称压力 Nominal Pressure(MPa) | 公称通径 Nominal Diameter(am) | 适用介质 Applicable Medium |
0.6 | 15~125 | 海水、淡水、滑油、燃油和 t≤250℃蒸汽 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam. |
1.0 | 65~125 | |
1.6 | 65~125 | |
2.5 | 15~100 |
华体会体育(中国)官方网站
主要零部件材质 Materials of Main Parts
零件名称 Parts Name | 材料 Material | |
名称 Name | 牌号 Marks | |
阀体、阀盖、阀盘 Body/Cover/Disc | 铸锡青铜 Cast Tin Bronze | ZCuSn10Zn2, ZCuSn5Pb5Zn5 |
华体会体育(中国)官方网站

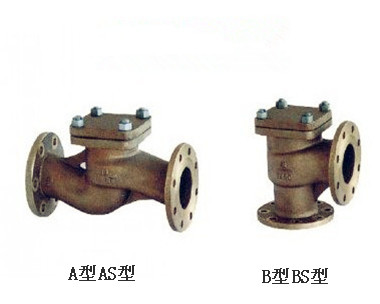

PN1.0、1.6、2.5MPa的A型、B型基本尺寸 Dimensions
公称 压力 PN (MPa) | 公称 通径 DN (mm) | 结构尺寸 Structure Dimension | 壁厚 Thickness | 法兰 Flange | 螺栓 Bolt | 升程 Lift Range m | 参考重量 Weight(kg) | ||||||||||
L | H≈ | H1 | |||||||||||||||
A型 | B型 | A型 | B型 | B型 | D | D1 | D2 | d0 | b | n个 | Th | A型 | B型 | ||||
1.0 | 65 | 290 | 115 | 123 | 94 | 115 | 6 | 155 | 123 | 104 | 15 | 14 | 6 | M14 | 19 | 12.2 | 11.3 |
80 | 310 | 125 | 139 | 104 | 125 | 6 | 170 | 138 | 118 | 15 | 14 | 8 | M14 | 23 | 16.4 | 14.3 | |
100 | 350 | 150 | 160 | 117 | 135 | 6 | 190 | 158 | 138 | 15 | 14 | 8 | M14 | 28 | 24.6 | 22.7 | |
125 | 400 | 175 | 185 | 129 | 155 | 7 | 215 | 183 | 164 | 15 | 14 | 10 | M14 | 35 | 37.0 | 30.4 | |
1.6 | 125 | 400 | 175 | 197 | 143 | 155 | 7 | 225 | 187 | 168 | 17 | 17 | 10 | M16 | 35 | 45.8 | 40.0 |
2.5 | 20 | 150 | 75 | 79 | 66 | 75 | 5 | 95 | 68 | 48 | 13 | 12 | 4 | M12 | 6 | 3.6 | 3.5 |
25 | 160 | 80 | 80 | 67 | 80 | 5 | 105 | 73 | 56 | 13 | 13 | 4 | M12 | 7 | 4.3 | 4.1 | |
32 | 180 | 85 | 85 | 68 | 85 | 5 | 115 | 83 | 64 | 15 | 13 | 6 | M14 | 9 | 5.0 | 4.8 | |
40 | 200 | 90 | 88 | 76 | 90 | 5 | 125 | 93 | 74 | 15 | 14 | 6 | M14 | 12 | 6.3 | 6.0 | |
50 | 230 | 95 | 109 | 85 | 95 | 6 | 135 | 103 | 84 | 15 | 14 | 6 | M14 | 15 | 8.6 | 8.2 | |
65 | 290 | 115 | 123 | 94 | 115 | 7 | 170 | 132 | 110 | 17 | 17 | 8 | M16 | 19 | 13.5 | 11.5 | |
80 | 310 | 125 | 150 | 110 | 125 | 8 | 185 | 147 | 126 | 17 | 19 | 8 | M16 | 23 | 19.8 | 17.3 | |
100 | 350 | 150 | 155 | 118 | 135 | 8 | 205 | 167 | 146 | 17 | 19 | 10 | M16 | 28 | 30.5 | 25.7 |
华体会体育(中国)官方网站
PN0.6、1.6、2.5MPa的AS型、BS型基本尺寸 Dimensions
公称 | 公称 | 结构尺寸 Structure Dimension | 壁厚Thickness | 法兰 Flange | 螺栓 Bolt | 升程Lift Range m | 参考重量Weight(kg) | ||||||||||
L | H≈ | H1 | |||||||||||||||
AS型 | BS型 | AS型 | BS型 | BS型 | D | D1 | D2 | d0 | b | n个 | Th | AS型 | BS型 | ||||
0.6 | 15 | 130 | 90 | 84 | 70 | 90 | 4 | 80 | 55 | 40 | 11 | 12 | 4 | M10 | 7 | 3.0 | 3.2 |
20 | 150 | 95 | 84 | 70 | 95 | 4 | 95 | 65 | 50 | 11 | 12 | 4 | M10 | 7 | 3.4 | 3.6 | |
25 | 160 | 100 | 84 | 70 | 100 | 4 | 100 | 75 | 60 | 11 | 14 | 4 | M10 | 7 | 3.8 | 4.0 | |
32 | 180 | 105 | 90 | 70 | 105 | 5 | 120 | 90 | 70 | 14 | 15 | 4 | M12 | 9 | 5.6 | 5.4 | |
40 | 200 | 115 | 101 | 77 | 115 | 5 | 130 | 100 | 80 | 14 | 16 | 4 | M12 | 12 | 7.1 | 6.8 | |
50 | 230 | 125 | 110 | 80 | 125 | 5 | 140 | 110 | 90 | 14 | 17 | 4 | M12 | 15 | 8.3 | 9.2 | |
65 | 290 | 145 | 122 | 89 | 145 | 6 | 160 | 130 | 110 | 14 | 17 | 4 | M12 | 19 | 16.4 | 12.2 | |
80 | 310 | 155 | 153 | 112 | 155 | 6 | 190 | 150 | 128 | 18 | 19 | 4 | M16 | 23 | 18.3 | 17.7 | |
100 | 350 | 175 | 162 | 113 | 175 | 6 | 210 | 170 | 148 | 18 | 20 | 4 | M16 | 28 | 28.0 | 23.8 | |
125 | 400 | 200 | 182 | 123 | 200 | 7 | 240 | 200 | 178 | 18 | 20 | 8 | M16 | 35 | 34.0 | 31.9 | |
1.6 | 65 | 290 | 145 | 136 | 97 | 145 | 6 | 185 | 145 | 122 | 18 | 17 | 4 | M16 | 19 | 15.6 | 14.4 |
80 | 310 | 155 | 158 | 117 | 155 | 6 | 200 | 160 | 133 | 18 | 19 | 4 | M16 | 23 | 22.0 | 20.8 | |
100 | 350 | 175 | 170 | 121 | 175 | 6 | 220 | 180 | 158 | 18 | 20 | 8 | M16 | 28 | 36.5 | 31.3 | |
125 | 400 | 200 | 185 | 129 | 200 | 7 | 250 | 210 | 184 | 18 | 22 | 8 | M16 | 35 | 43.0 | 37.2 | |
2.5 | 15 | 130 | 90 | 84 | 70 | 90 | 5 | 95 | 65 | 47 | 14 | 12 | 4 | M12 | 7 | 4.4 | 4.2 |
20 | 150 | 95 | 84 | 70 | 95 | 5 | 105 | 75 | 58 | 14 | 12 | 4 | M12 | 7 | 4.8 | 4.6 | |
25 | 160 | 100 | 84 | 70 | 100 | 5 | 115 | 85 | 68 | 18 | 14 | 4 | M12 | 7 | 5.2 | 5.4 | |
32 | 180 | 105 | 90 | 70 | 105 | 5 | 140 | 100 | 78 | 18 | 15 | 4 | M16 | 9 | 7.3 | 7.1 | |
40 | 200 | 115 | 101 | 77 | 115 | 5 | 150 | 110 | 88 | 18 | 16 | 4 | M16 | 12 | 9.1 | 8.7 | |
50 | 230 | 125 | 110 | 81 | 125 | 6 | 165 | 125 | 102 | 18 | 17 | 4 | M16 | 15 | 10.9 | 10.7 | |
65 | 290 | 145 | 136 | 97 | 145 | 7 | 185 | 145 | 122 | 18 | 17 | 8 | M16 | 19 | 15.9 | 14.7 | |
80 | 310 | 155 | 158 | 117 | 155 | 7 | 200 | 160 | 133 | 18 | 19 | 8 | M16 | 23 | 22.2 | 21.1 | |
100 | 350 | 175 | 170 | 121 | 175 | 8 | 235 | 190 | 158 | 22 | 20 | 8 | M20 | 28 | 37.0 | 3.8 |
